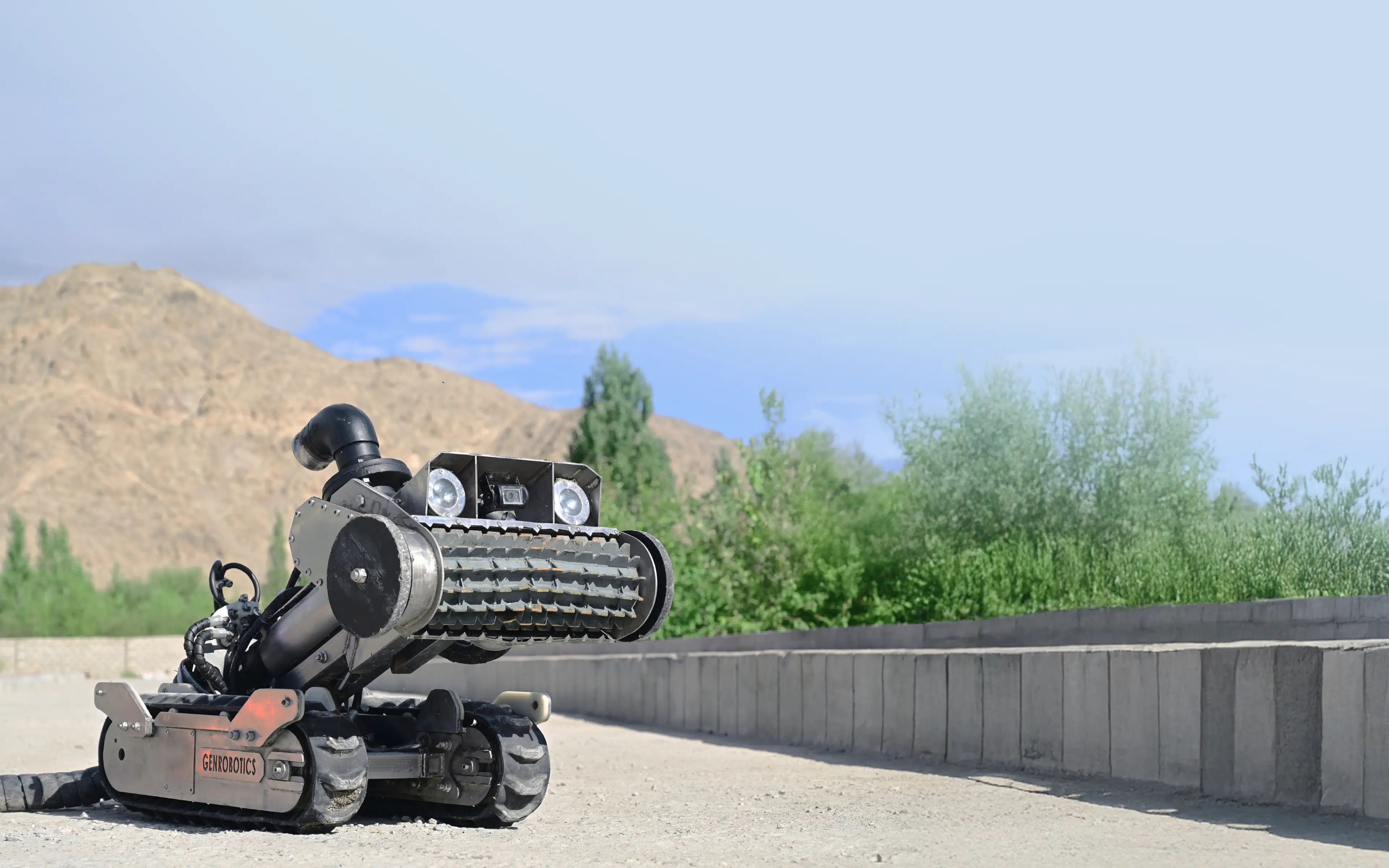

Horizontal & Wide Confined Space Rover

A heavy-duty robotic rover engineered for refineries and chemical plants. Wilboar delivers remote, fully robotic cleaning of tunnels, ducts, and pipelines with precision, speed, and zero manual entry.

Flameproof & Explosion-Proof | PESO Certification Under Process

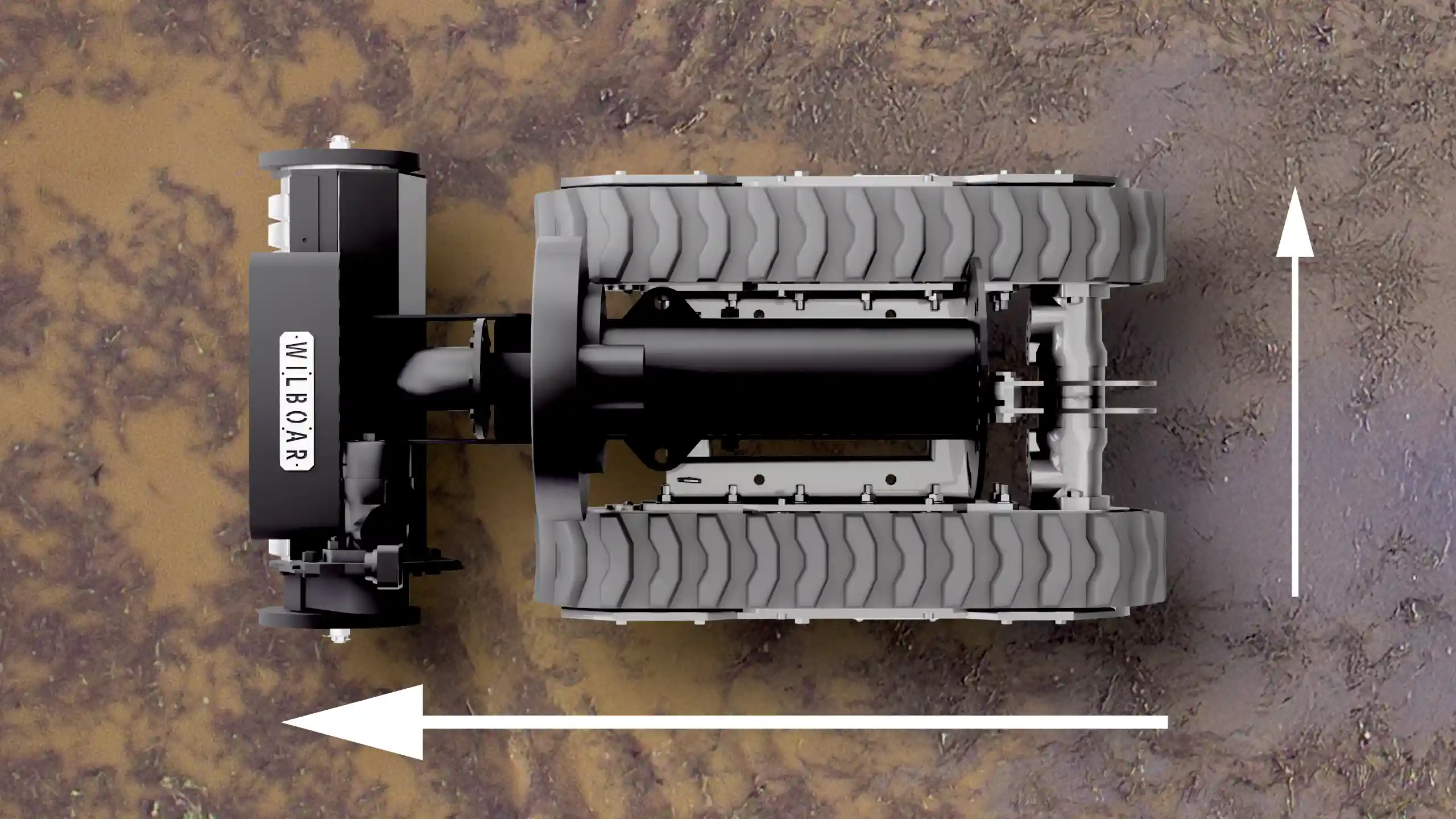

  • Skid-Steering Rubber Tracks
  • 900 LPM High-Powerful Pumping

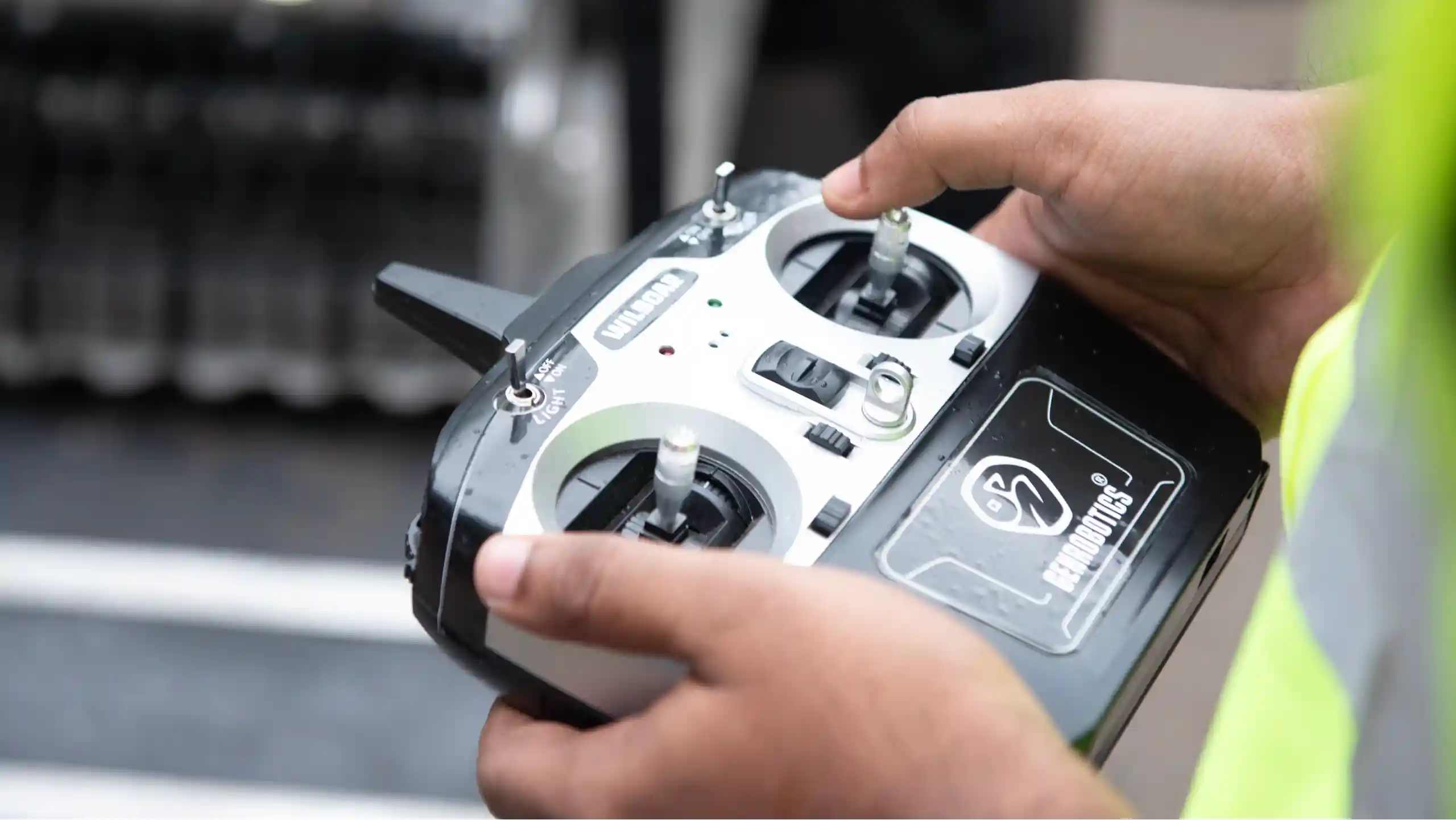

  • Joystick-Controlled Remote Interface

Utility & Usability

Wilboar is adaptable across multiple refinery environments, with fully customisable operational specifications.

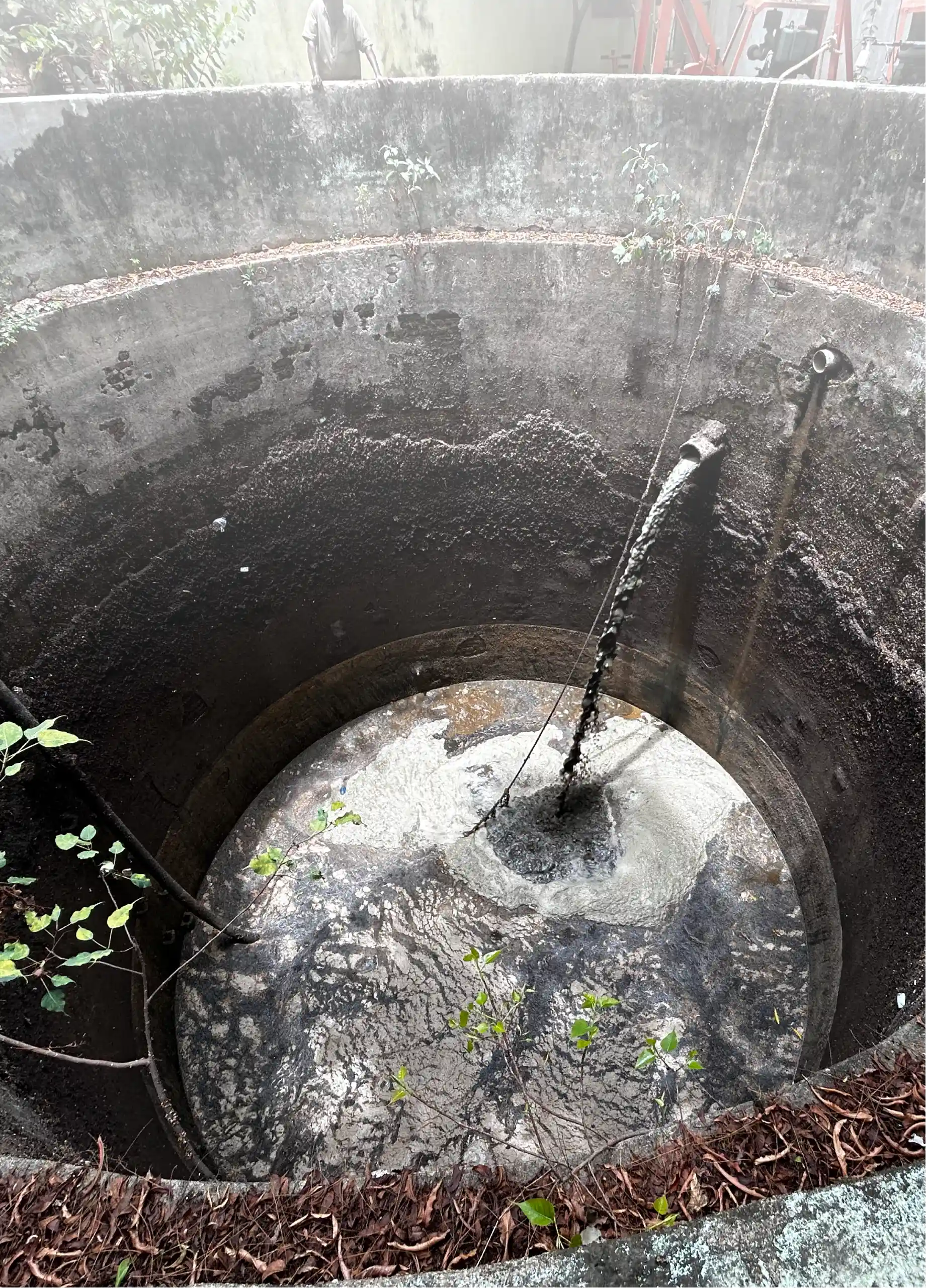

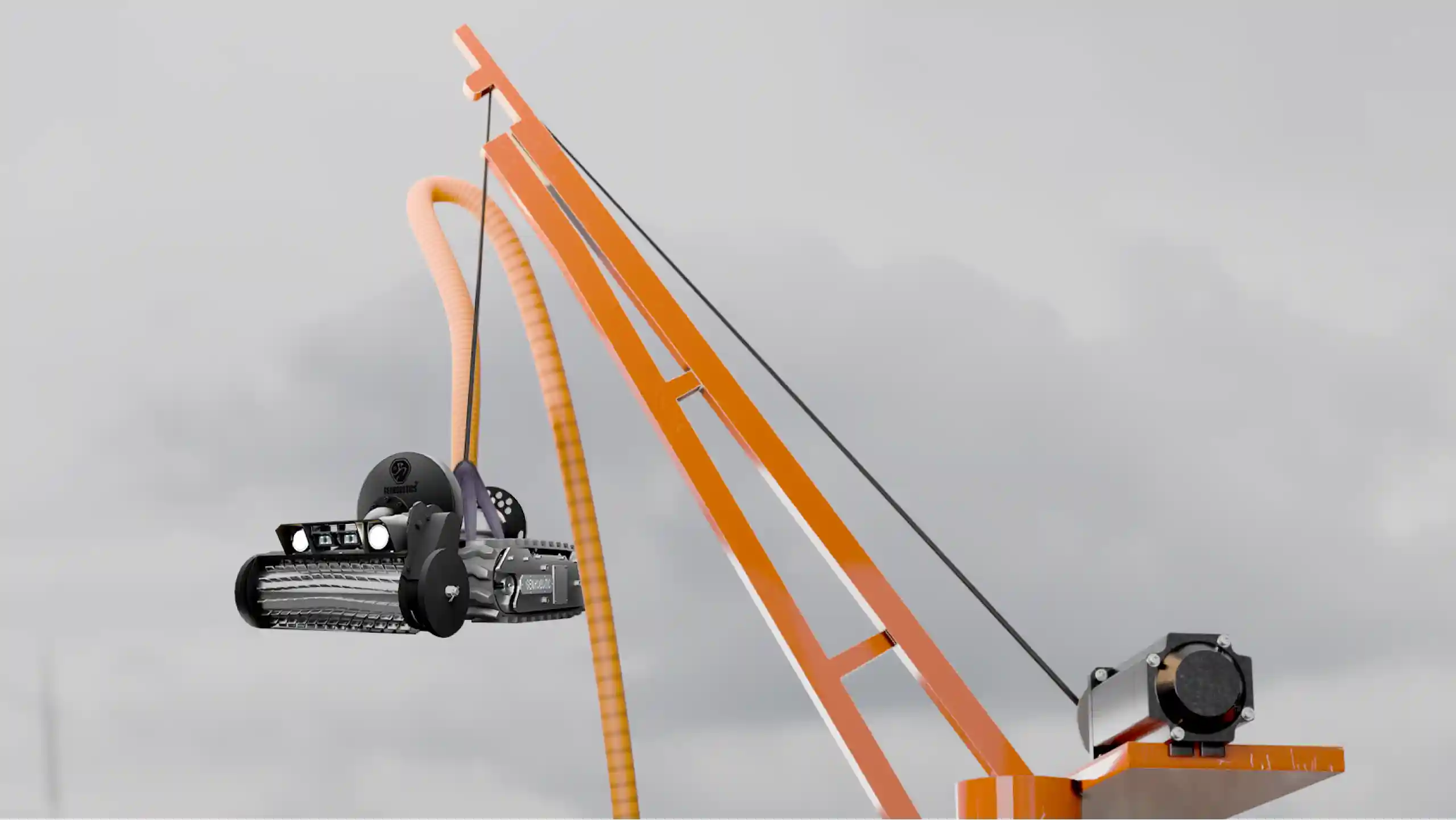

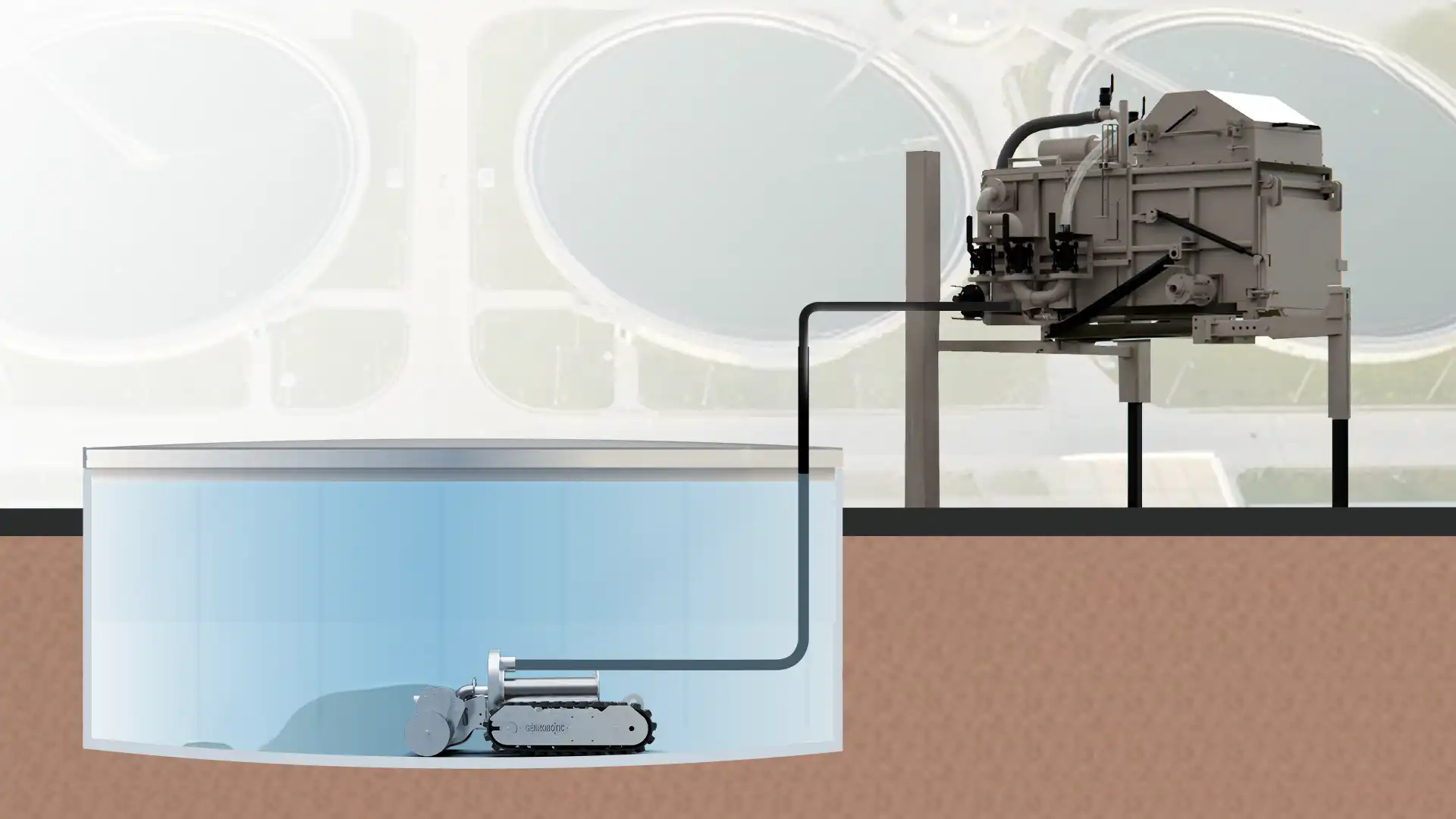

Vertical Entry

Vertical Entry

(Open Wells)

Reduced setup and transit times enable cleaning of more structures daily, significantly improving operational efficiency.

  • Max Depth: Up to 10 Meters
  • Jetting Power: Up to 150 Bar
  • Suction Power: 200-400 LPM (Using Submersible Pump)
  • Controlled via: Joystick

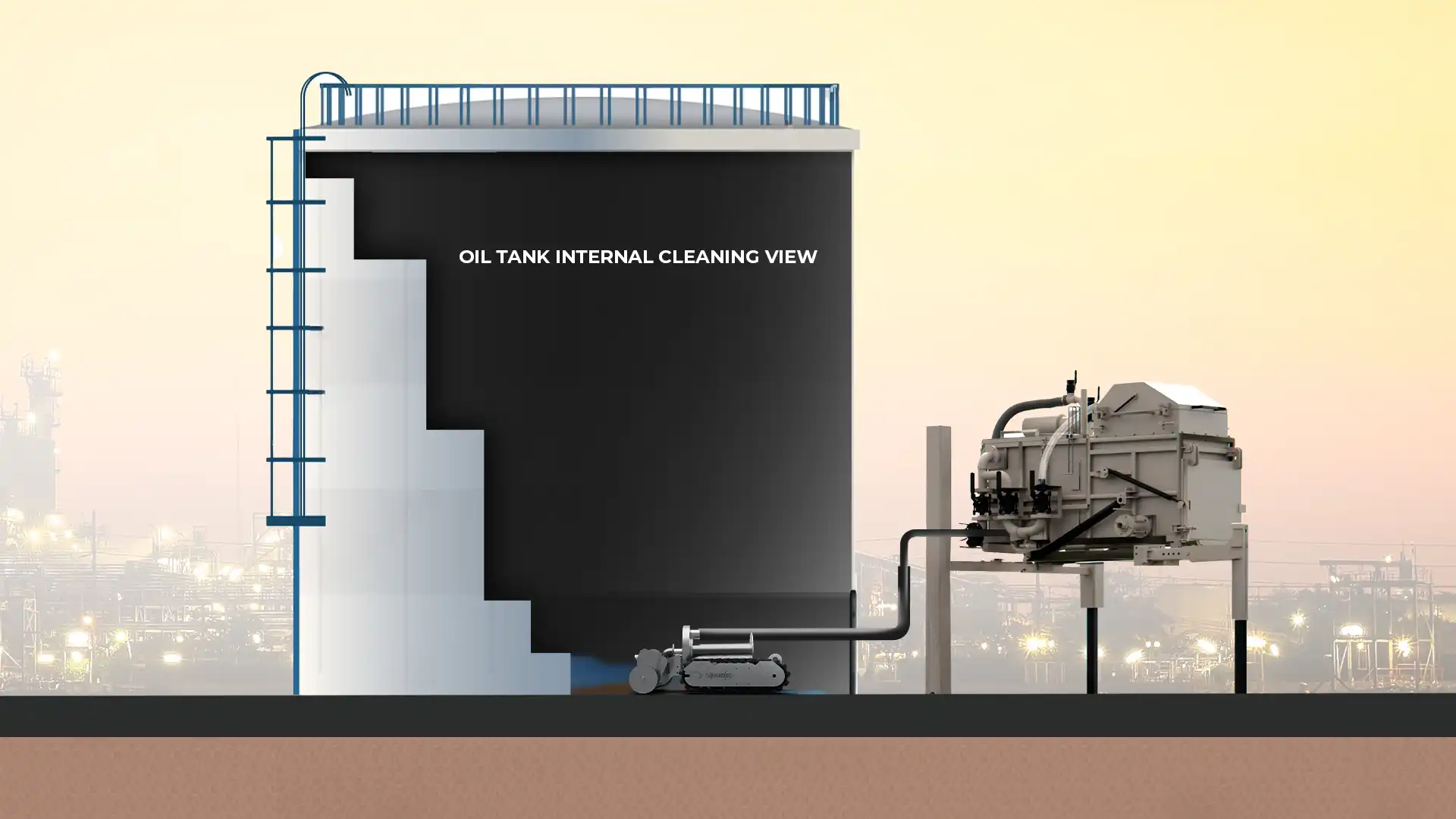

Horizontal Entry

Horizontal Entry

(Side Manways)

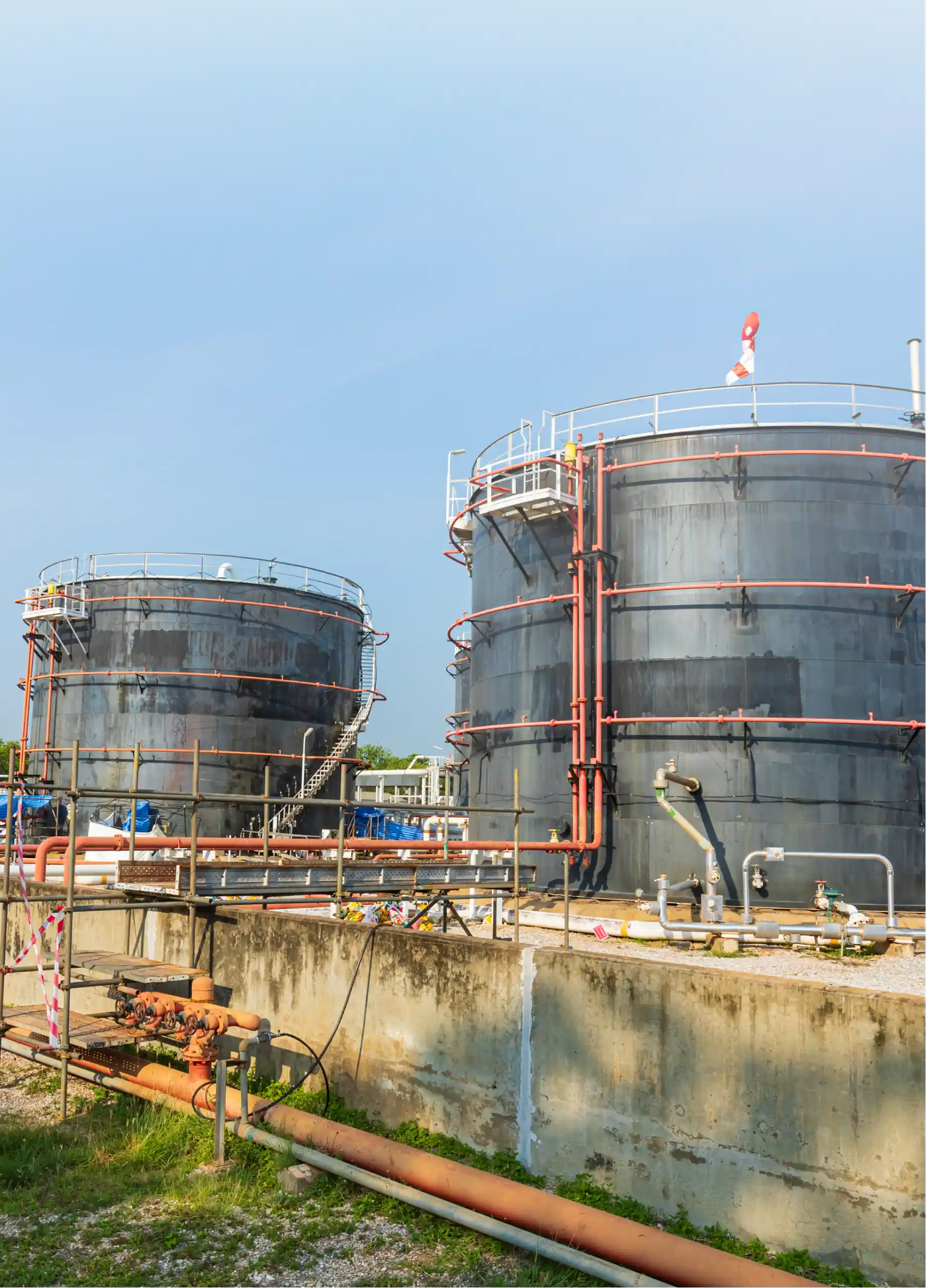

Easily deployed through horizontal side manways for thorough cleaning and sludge removal inside above-ground storage tanks.

  • Insertion Diameter: Min 24 Inches
  • Jetting Power: Up to 150 Bar
  • Suction Power: 200-400 LPM
  • Controlled via: Joystick

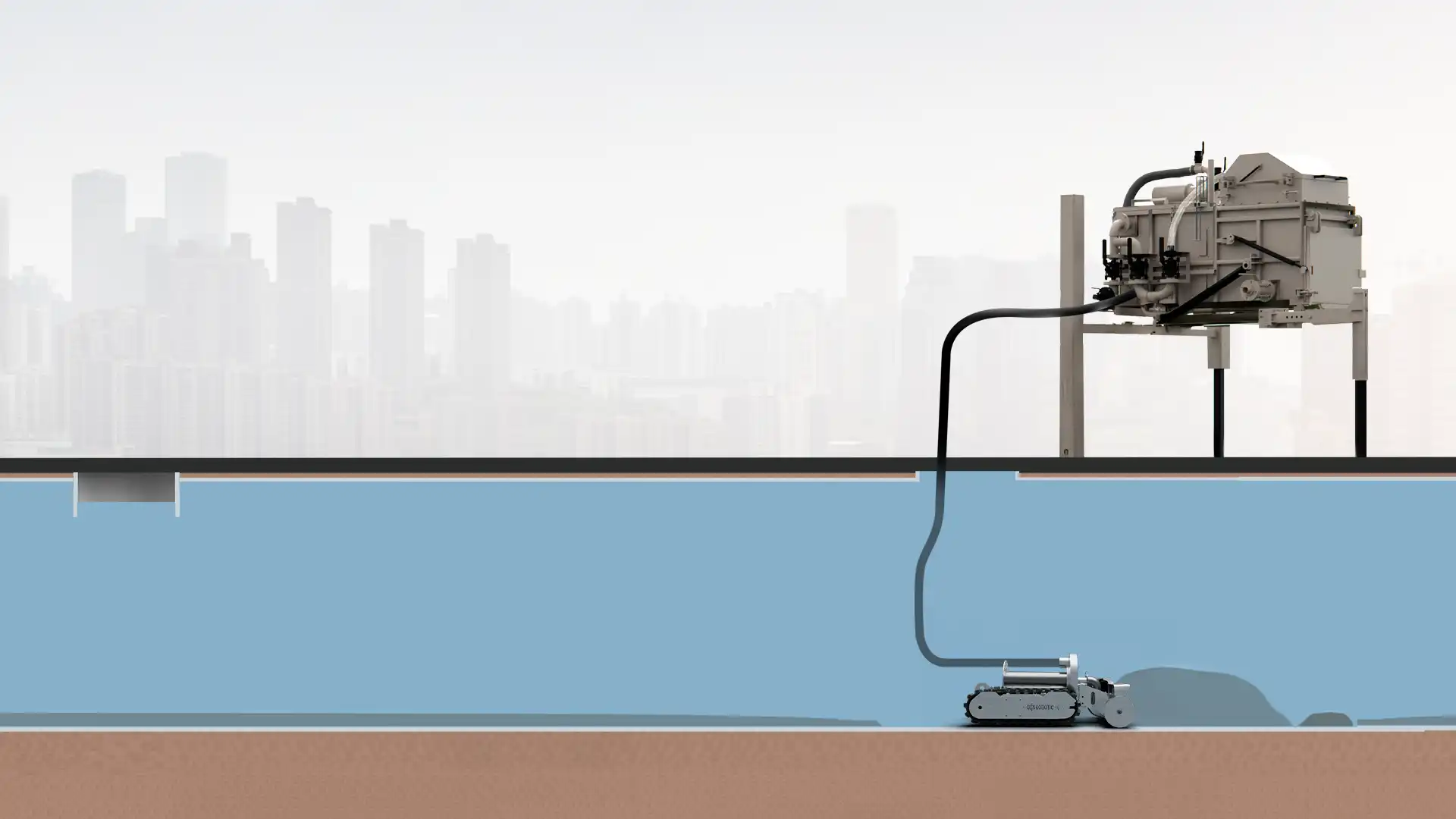

Wide Corridors

Wide Corridors

(Open Spaces)

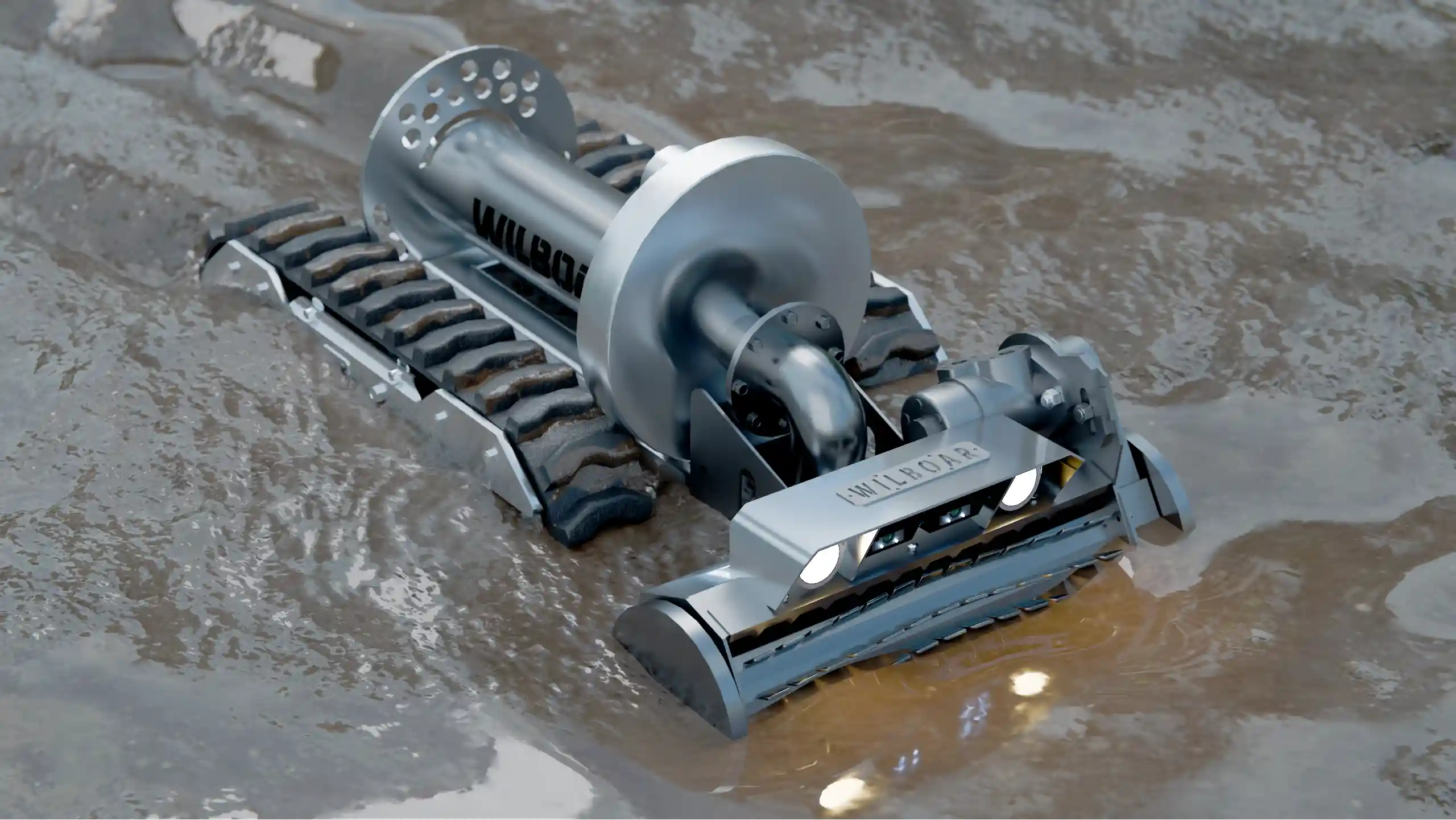

Optimised for wide corridors and large internal tank areas, ensuring maximum coverage and manoeuvrability.

  • Travel Speed: Adjustable
  • Jetting Power: Up to 150 Bar
  • Suction Power: 200-400 LPM
  • Controlled via: Joystick

Onsite Configuration & Filtration

Wilboar operates using an efficient closed-loop sustainability model.

Extraction

Collected waste is actively suctioned from the confined space by the rover's integrated heavy-duty pump.

Separation

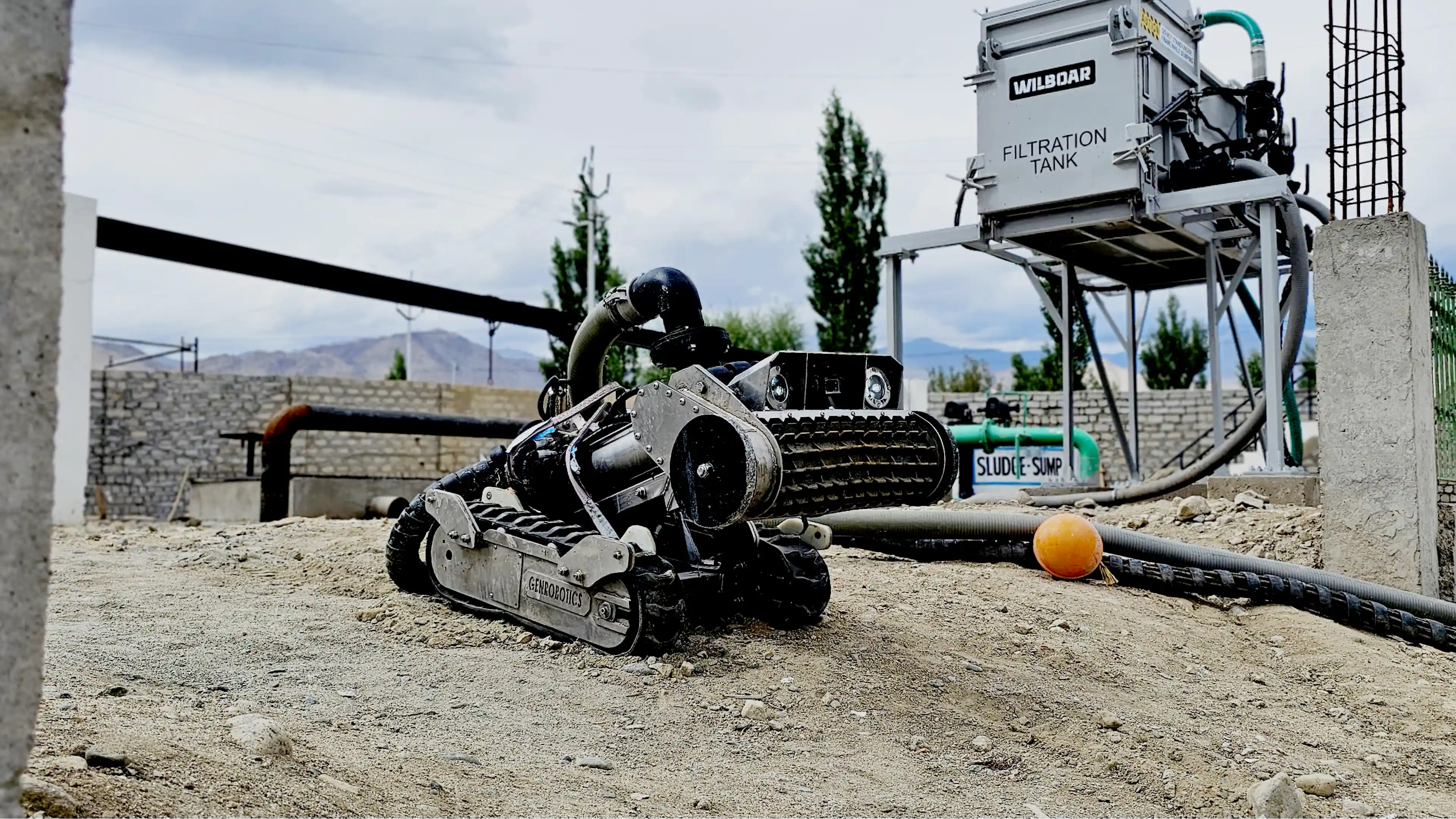

Waste is transferred via a 50m tether to an external 1000L filtration tank where solids and liquids are separated.

Reintroduction

Filtered water is safely reintroduced into the refinery’s system, supporting sustainable, closed-loop maintenance operations

Onsite Configuration & Filtration

Technical Highlights

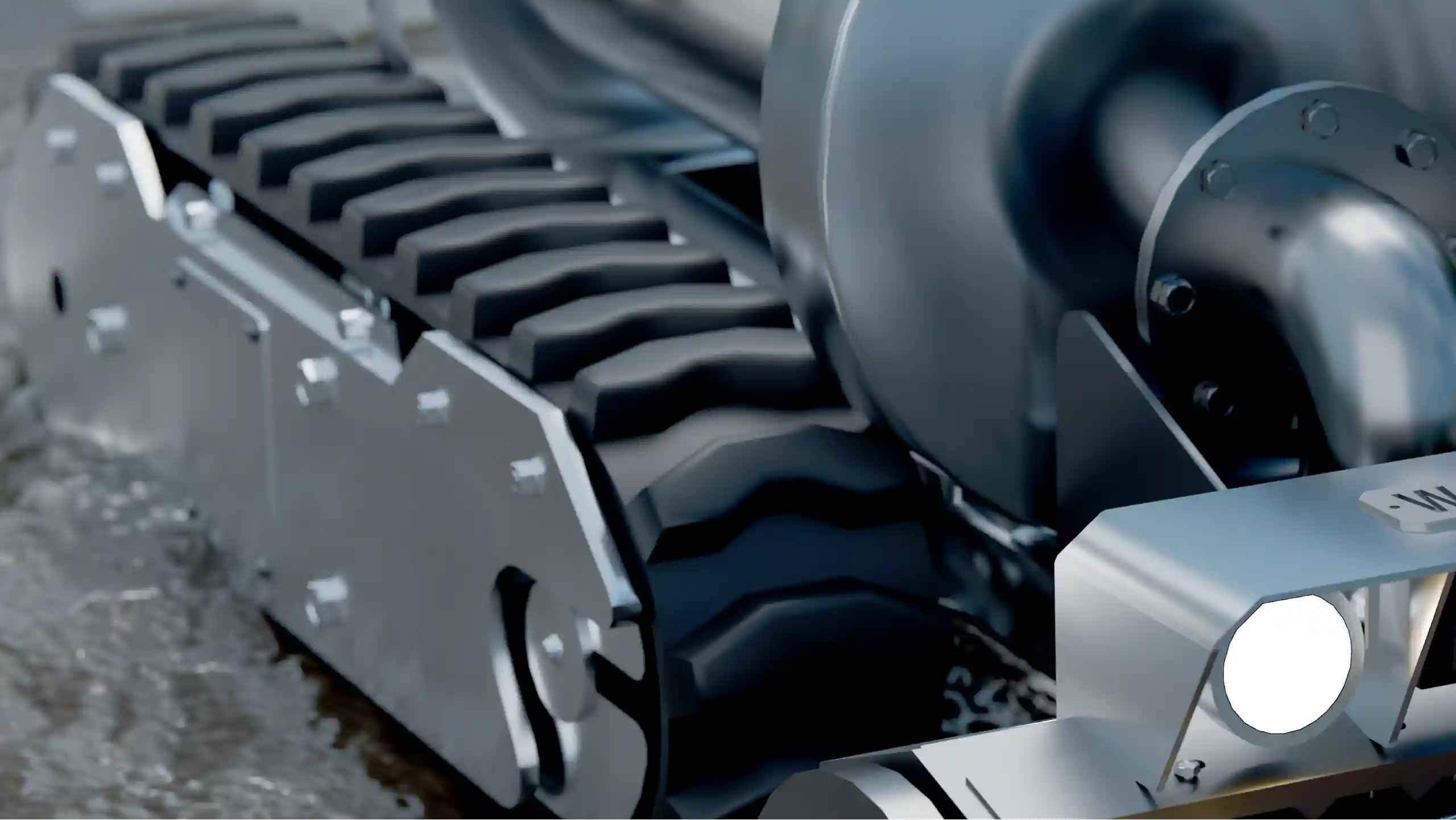

Agile Mobility

Specialised propulsion and mobility systems enable smooth navigation across varied internal surfaces and confined environments.

Powerful Pumping

900 LPM pumping capacity with dry-run protection and a 20° tilt range for uninterrupted sludge drainage.

Night Vision Ready

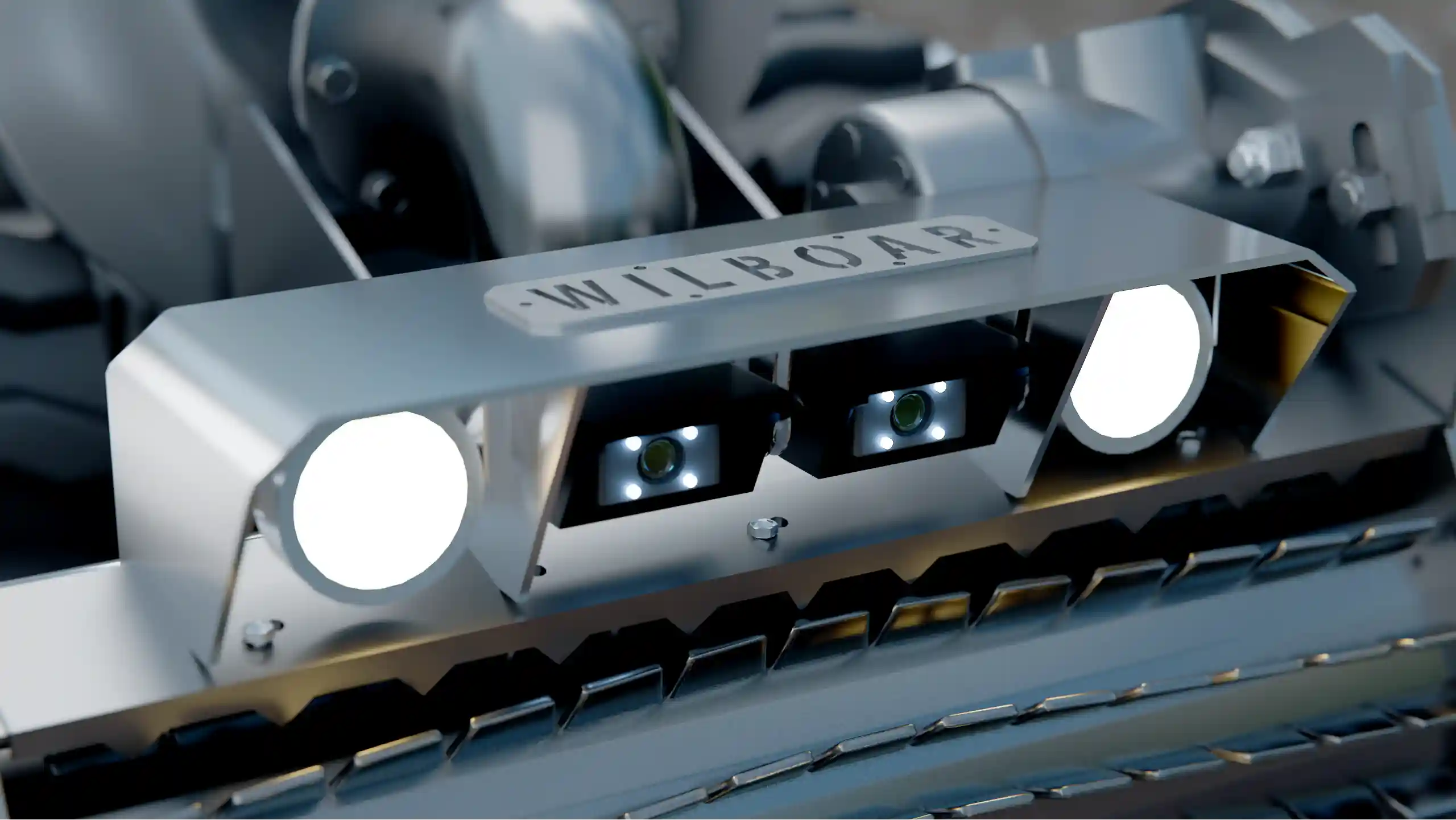

IP68-rated night-vision cameras, dual high-intensity LED systems, and explosion-proof architecture ensure complete visibility within hazardous and pitch-black environments.

Durable Build

Constructed using coated mild steel, industrial rubber, and advanced polymer composites for superior corrosion resistance and longevity.

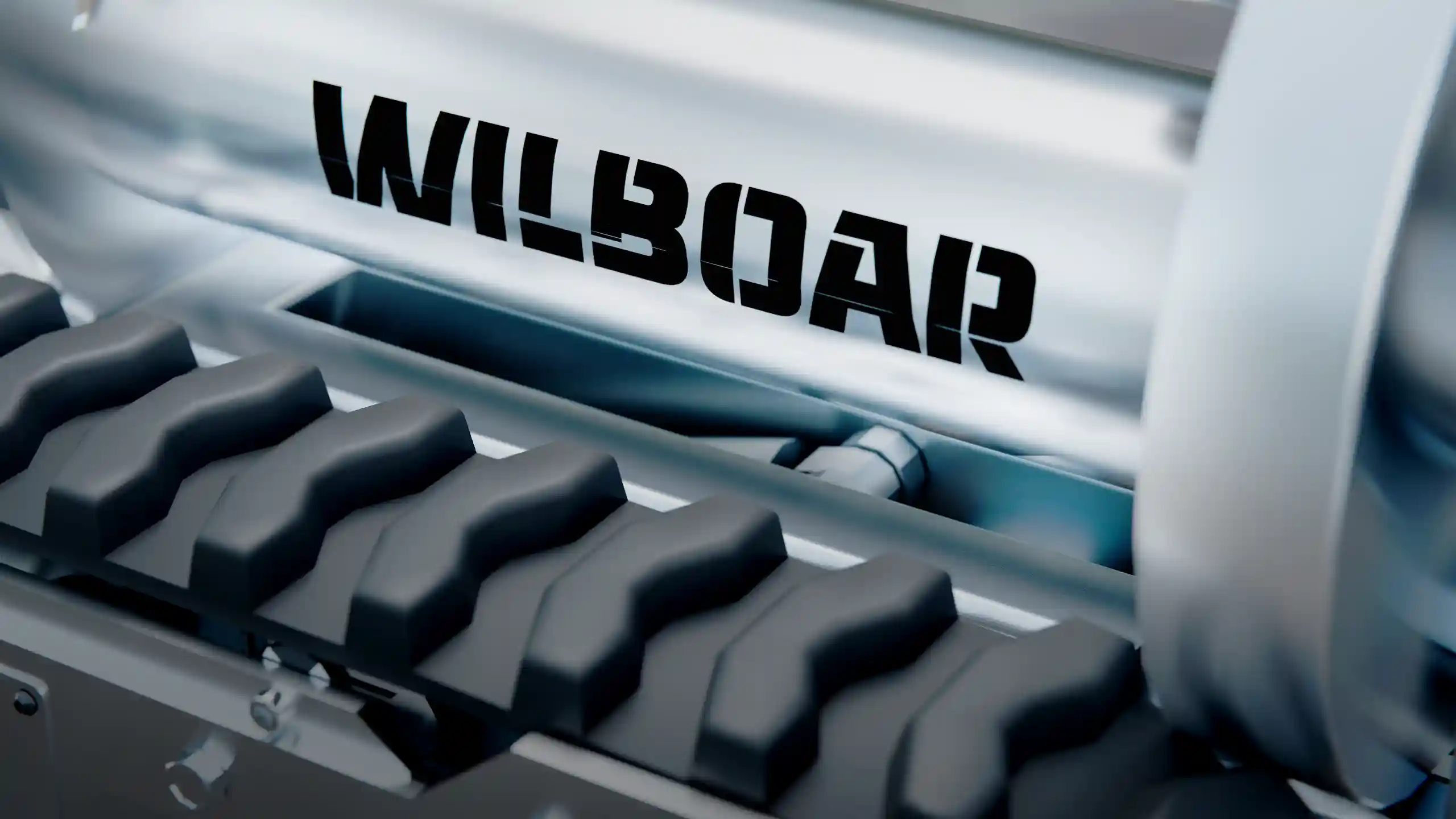

Modular Suction

Adaptable sludge suction modules handle various industrial waste types, ranging from silt to dense organic deposits.

Robust Hydraulics

Reliable operation at 100–150 bar pressure, protected through integrated safety valves.

Extended Reach

30–50 metre tether connectivity provides deep operational reach throughout refinery infrastructure.

High-Capacity Cleaning

External 1,000-litre filtration system continuously processes up to 500 litres of extracted waste per hour.

Frequently Asked Questions

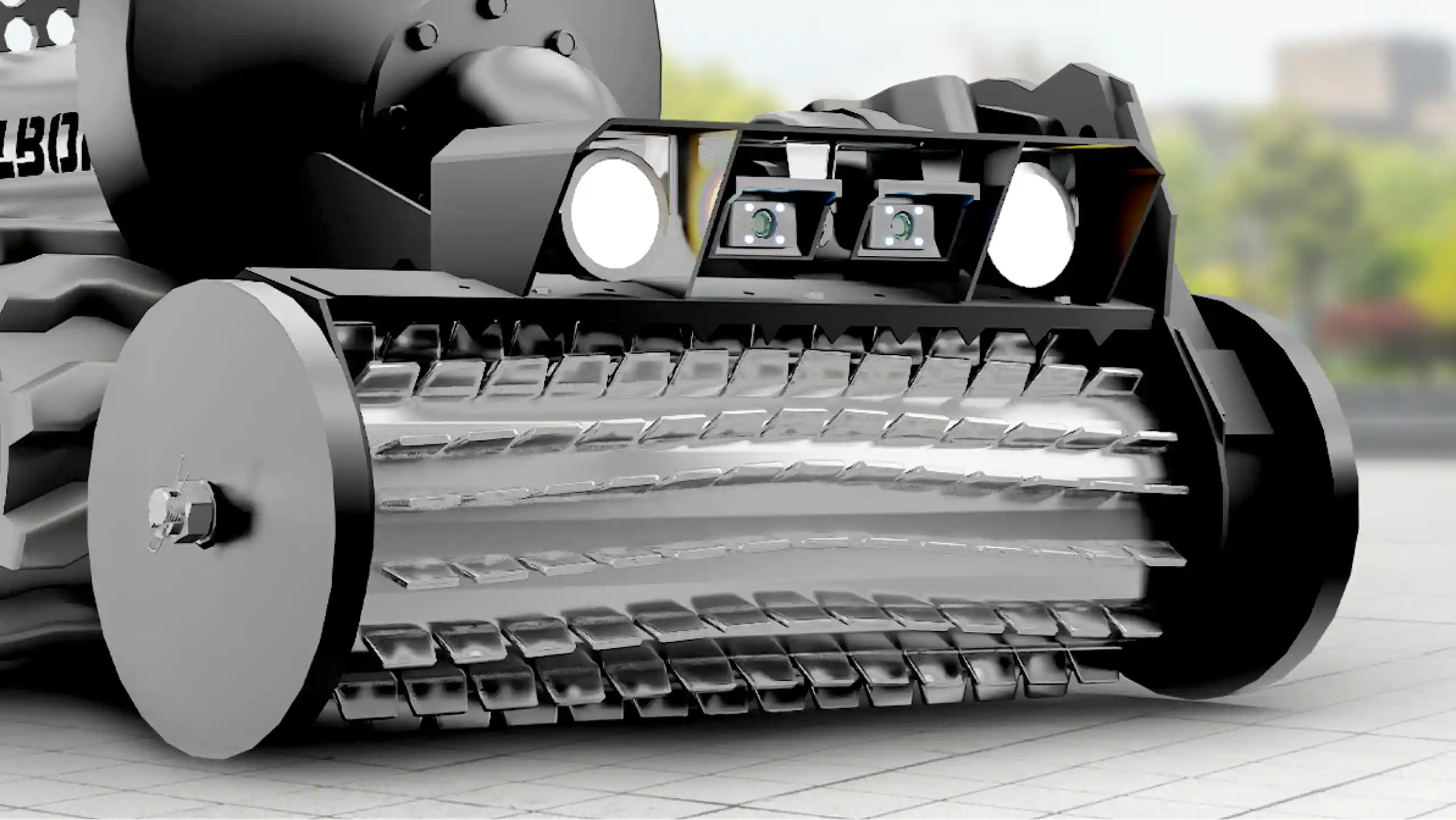

Thick sludge, petrochemical residues, scale deposits, sand, and hydrocarbon cake formations. Interchangeable end-effectors including grinders, loaders, and high-pressure jetting nozzles can be configured depending on operational requirements.

Wilboar is being developed for hazardous refinery environments. Flameproof and explosion-proof variants are available, with PESO certification currently under process.

The system is fully remotely operated through a dedicated control panel. Extended cable configurations are available for large assets, whilst dual IP68 night-vision cameras provide real-time visibility.

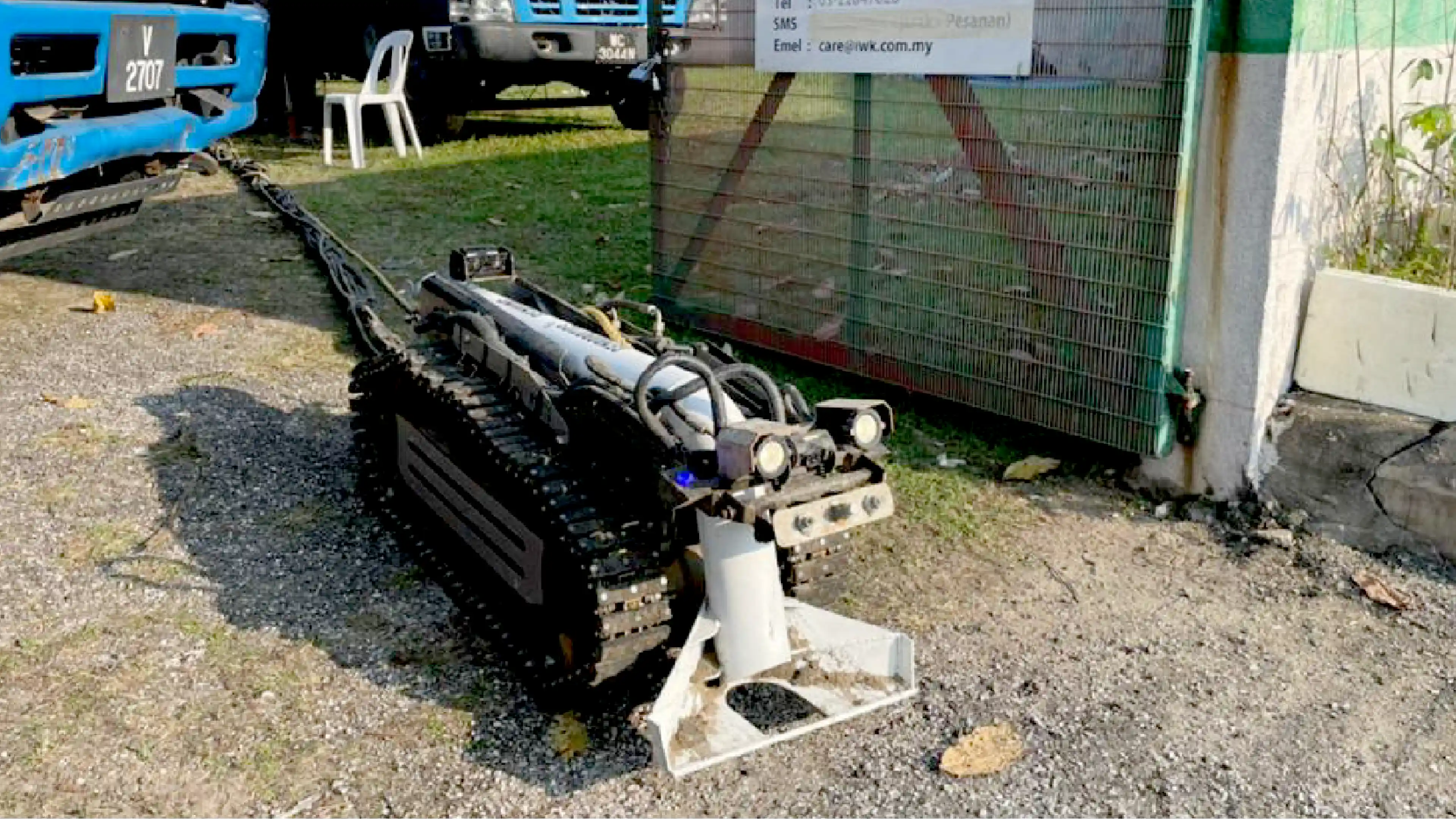

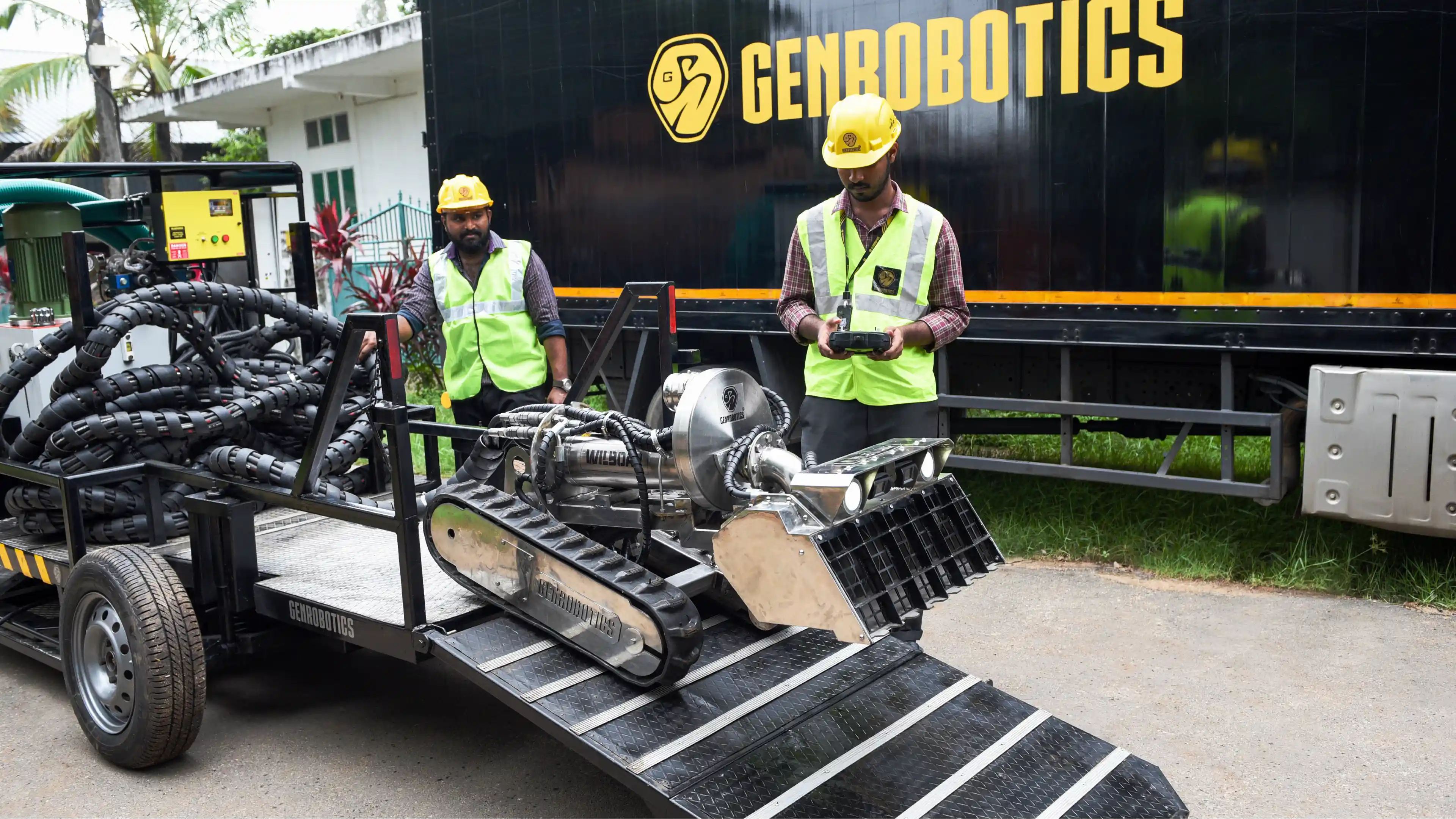

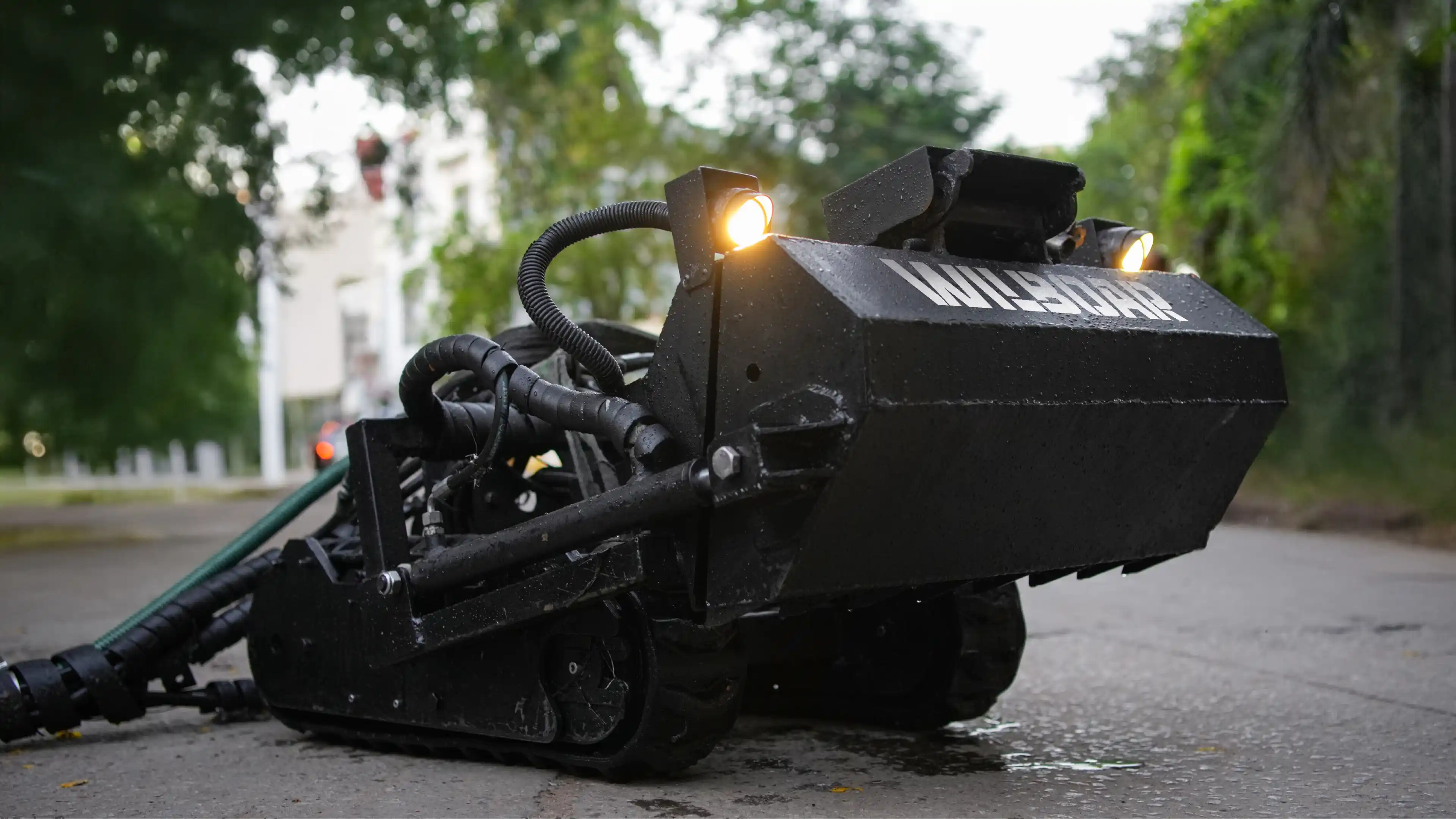

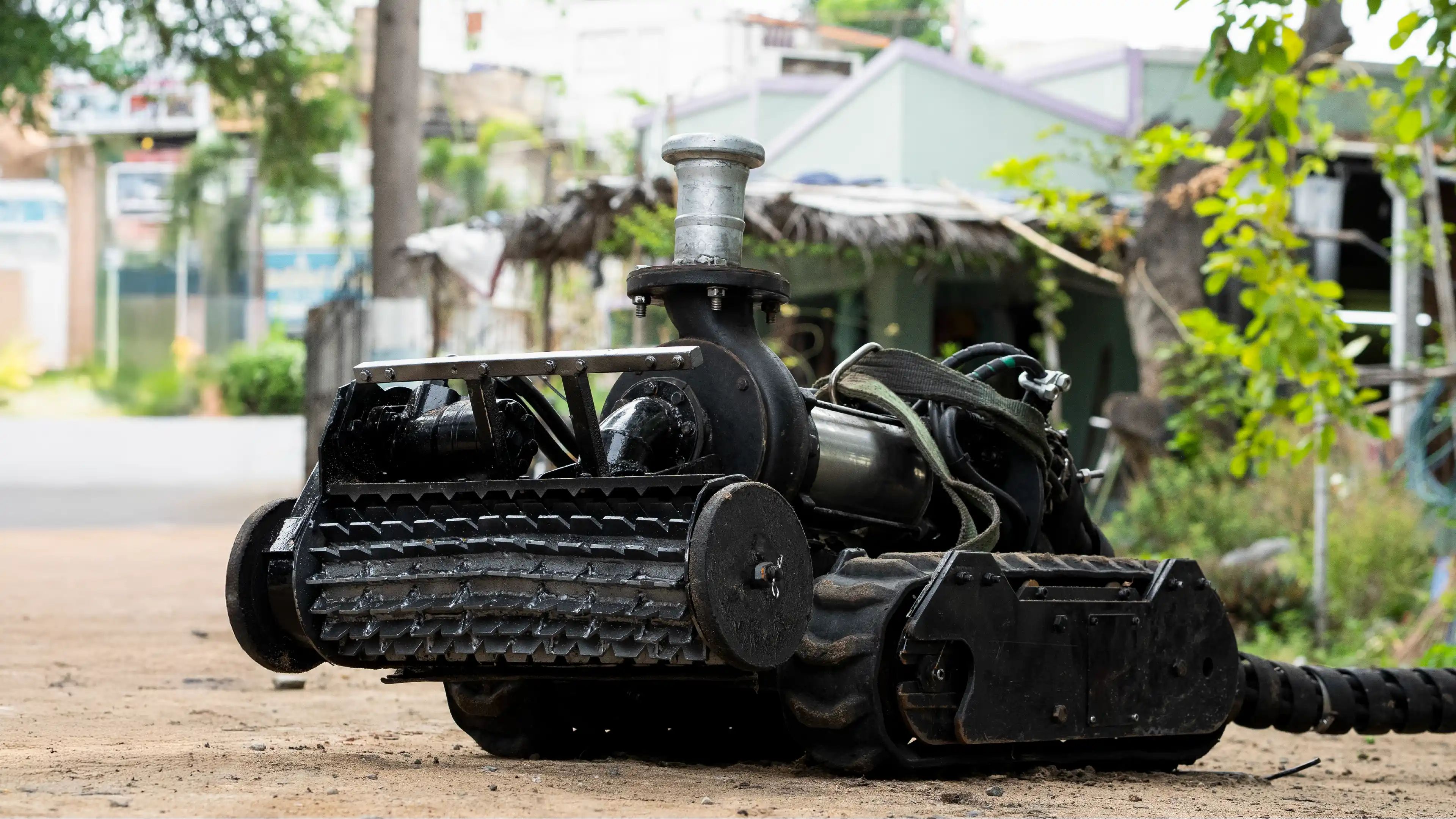

Deployments include ONGC, IOCL, and BPCL refinery operations across India, as well as Trivandrum International Airport (Adani), Leh-Ladakh, Nellore, Chennai Metrowater, and Indah Water, Malaysia.

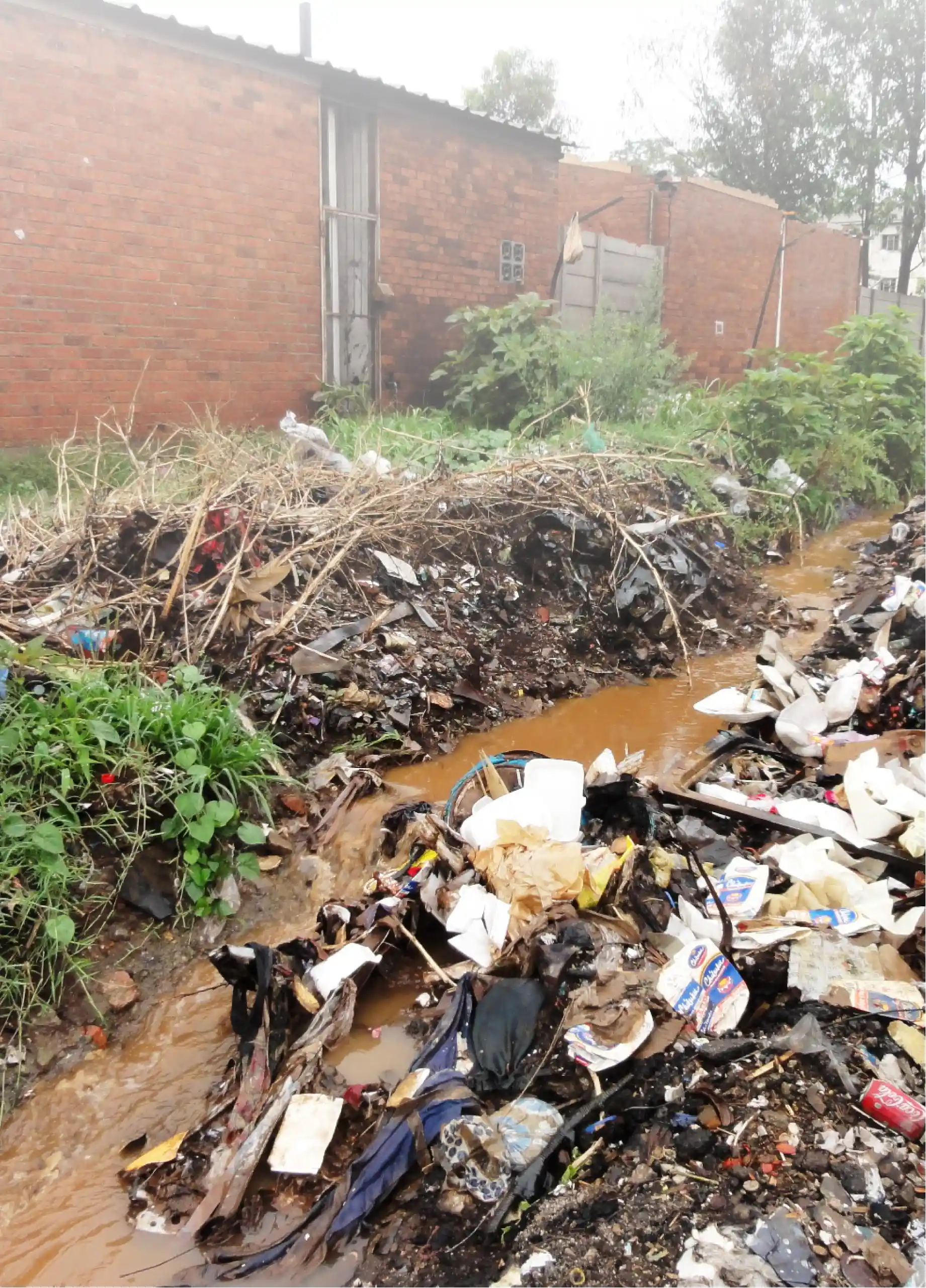

Bandicoot is designed for vertical confined spaces accessed from above, such as manholes and sewer wells. Wilboar is engineered for large horizontal environments including tanks, canals, and drainage systems
